Features of Rectangular Connectors

2024-06-13

A rectangular connector, also known simply as a rectangular or rectangular-shaped connector, is a type of electrical connector characterized by its boxy or rectangular shape. These connectors are widely used in various industries and applications where robust and reliable electrical connections are required. Here’s an overview of rectangular connectors, including their features, types, applications, and considerations:

Features of Rectangular Connectors

1. Shape: Typically boxy or rectangular in shape, providing a distinct appearance and structural stability.

2. Pin Configuration: Can accommodate multiple pins arranged in rows and columns, allowing for complex connections.

3. Durability: Designed to withstand mechanical stress, vibrations, and environmental factors such as moisture and dust.

4. Versatility: Available in various sizes, pin configurations, and materials to suit different applications.

Types of Rectangular Connectors

1. D-sub Connectors:

  - Description: Commonly used in computer and telecommunications equipment.

  - Features: Available in standard sizes like DB9, DB15, DB25, with configurations for both signal and data transmission.

2. Rectangular Modular Connectors:

  - Description: Composed of modules that can be combined to create custom configurations.

  - Features: Often used in telecommunications and networking applications, providing flexibility in layout and function.

3. Power Connectors:

  - Description: Designed to handle high current and voltage levels for power transmission.

  - Features: Include locking mechanisms for secure connections and may incorporate additional features like waterproofing.

4. Board-to-Board Connectors:

  - Description: Connects printed circuit boards (PCBs) within electronic devices.

  - Features: Provides precise alignment and reliability in data and power transmission between PCBs.

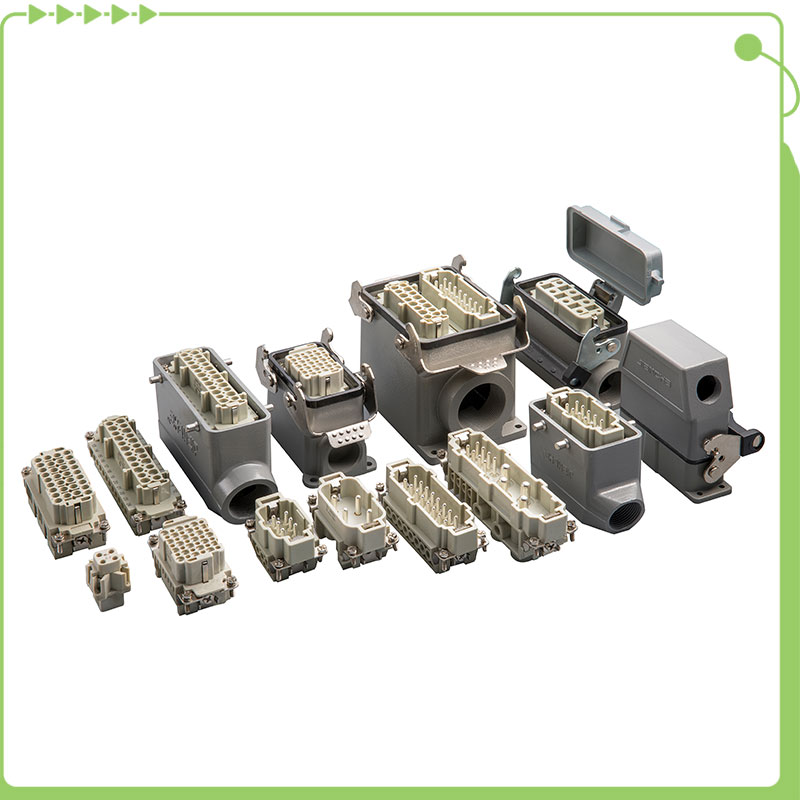

5. Rectangular Heavy-Duty Connectors:

  - Description: Used in industrial applications where robustness and reliability are critical.

  - Features: Can withstand harsh environments, extreme temperatures, and mechanical stress.

Applications of Rectangular Connectors

1. Industrial Equipment:

  - Used in machinery, control systems, and automation equipment for signal and power transmission.

2. Telecommunications and Networking:

  - Found in routers, switches, and servers for data transmission between components.

3. Computer Hardware:

  - Connects peripherals such as monitors, keyboards, and printers to computers.

4. Automotive Electronics:

  - Used in vehicle control systems, sensors, and infotainment systems for reliable electrical connections.

5. Medical Devices:

  - Found in diagnostic equipment, patient monitoring systems, and medical imaging devices for data and power transmission.

Considerations for Rectangular Connectors

1. Environmental Conditions: Choose connectors rated for specific environmental conditions such as moisture resistance, dust protection, and temperature range.

2. Connector Size and Configuration: Select the appropriate size, pin count, and layout configuration to match the application's requirements.

3. Material Compatibility: Ensure the connector materials are compatible with the operating environment and the materials they will connect to.

4. Connector Locking Mechanism: Consider connectors with locking mechanisms for secure connections in applications prone to vibration or movement.

5. Ease of Installation and Maintenance: Evaluate ease of installation, mating cycles, and maintenance requirements to minimize downtime and ensure reliability.

Summary

Rectangular connectors play a crucial role in facilitating electrical connections across various industries, offering durability, versatility, and reliability. Whether used in industrial machinery, telecommunications equipment, automotive electronics, or medical devices, these connectors provide robust solutions for transmitting signals and power. By understanding their features, types, applications, and considerations, engineers and manufacturers can make informed decisions to select the right rectangular connectors for their specific needs, ensuring efficient and reliable operation in diverse environments.
