Information about RX Ring Joint Gaskets

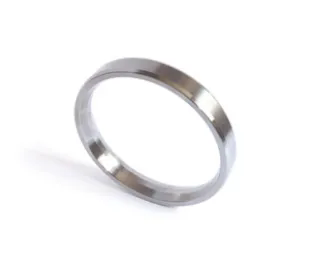

An RX ring joint gasket is a type of sealing gasket used in high-pressure and high-temperature applications, commonly found in the oil and gas industry. These gaskets are engineered to fit into machined grooves on flanges and are designed to create a metal-to-metal seal. Here are some key features and information about RX ring joint gaskets:

Features:

1. High-Pressure Resistance: RX ring joint gaskets are suitable for high-pressure applications.

2. Temperature Resistance: They can withstand high temperatures, making them ideal for harsh environments.

3. Durable Material: Typically made from materials such as stainless steel, soft iron, or other alloys.

4. Metal-to-Metal Seal: The design ensures a reliable seal by deforming slightly to match the groove.

5. Self-Energizing: The RX gasket is slightly larger than the standard groove and is designed to provide a high level of sealing efficiency.

Applications:

- Oil and gas pipelines

- Petrochemical refineries

- Power generation

- High-pressure vessel connections

- Offshore drilling

Types of RX Ring Joint Gaskets:

1. RX: Designed for API 6A and ASME B16.20 flanges, suitable for pressure ratings up to 15,000 psi.

2. BX: Suitable for higher-pressure applications, designed for API 6BX flanges.

Installation and Maintenance:

- Proper Alignment: Ensure the gasket is properly aligned with the flange groove.

- Torque Application: Apply the correct torque to the bolts to achieve a proper seal.

- Inspection: Regularly inspect the gaskets for wear and tear and replace them as needed to maintain seal integrity.
