The Versatility and Functionality of Small Pan Head Screws with Cross Recess

In the world of fasteners, small pan head screws with cross recesses might not be the most glamorous, but they play a crucial role in a wide range of applications. Whether you’re working on electronics, assembling furniture, or constructing intricate machinery, these seemingly simple screws offer remarkable versatility and reliability. This blog will delve into the features, advantages, and applications of small pan head screws with cross recesses, highlighting why they’re a staple in many industries.

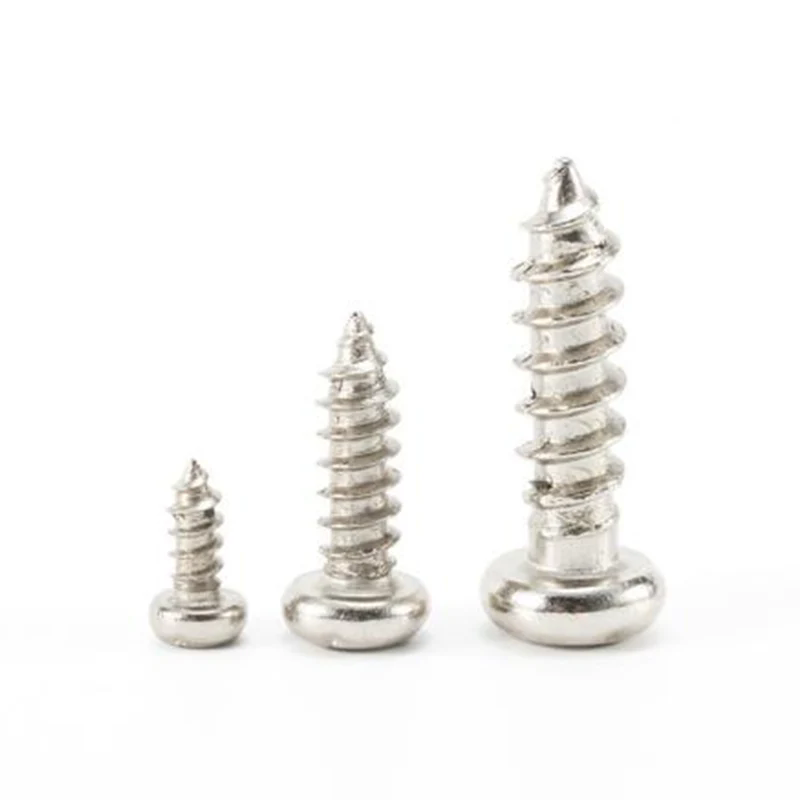

What Are Small Pan Head Screws with Cross Recess?

Small pan head screws with cross recesses are a type of fastener characterized by their distinct head shape and drive type. Here’s a breakdown of their key features:

1. Pan Head: The "pan" head is slightly rounded with a flat top, offering a low profile that makes it suitable for applications where a flush finish is desired. The shape of the pan head provides a larger bearing surface, which helps in distributing the load evenly and reducing the risk of damaging the material being fastened.

2. Cross Recess: The cross recess, also known as a Phillips drive, consists of a cross-shaped slot on the head of the screw. This design allows for better grip and torque transfer compared to traditional flat head screws, reducing the likelihood of slipping during installation.

3. Small Size: These screws are typically small in diameter and length, making them ideal for applications where space is limited or precision is required. Despite their small size, they offer strong holding power and are available in various materials and finishes.

Advantages of Small Pan Head Screws with Cross Recess

1. Enhanced Torque Control: The cross recess design provides a better grip for the screwdriver, allowing for more controlled torque application. This reduces the risk of stripping the screw head and ensures a secure fit.

2. Reduced Cam-Out: Cam-out occurs when the screwdriver slips out of the screw head under pressure. The cross recess helps to minimize cam-out, leading to more efficient and precise fastening.

3. Aesthetic Appeal: The pan head design offers a clean and unobtrusive appearance. When installed, the screw sits flush with the surface, which is ideal for applications where a smooth finish is important.

4. Wide Applicability: Small pan head screws with cross recesses are versatile and used in a variety of applications, including electronics, automotive components, furniture assembly, and more. Their small size makes them suitable for delicate and intricate work.

5. Ease of Use: The cross recess design makes these screws easier to drive compared to flat head screws, particularly in tight or hard-to-reach spaces. This ease of use can speed up assembly processes and reduce the likelihood of errors.

6. Variety of Materials and Finishes: These screws are available in various materials such as stainless steel, brass, and carbon steel, as well as different finishes like zinc plating or black oxide. This variety allows for customization based on specific application needs, including corrosion resistance and aesthetic preferences.

Common Applications

1. Electronics: In electronics, small pan head screws are used to secure circuit boards, connectors, and other components. Their small size and precision make them ideal for use in compact electronic devices.

2. Furniture Assembly: These screws are frequently used in furniture assembly, where their low profile and flush finish contribute to a clean appearance. They are commonly found in flat-pack furniture and other home furnishings.

3. Automotive Components: In the automotive industry, small pan head screws are used in various parts and assemblies, including interior panels, trim pieces, and electrical components. Their strength and reliability are essential for maintaining vehicle integrity.

4. Medical Devices: Precision is crucial in medical device manufacturing, and small pan head screws are often used in the assembly of devices and equipment where space is limited and accuracy is paramount.

5. Machinery: Small pan head screws are also used in machinery and equipment, where they help secure parts and components while maintaining a compact design.

Tips for Choosing and Using Small Pan Head Screws

1. Select the Right Size: Ensure that the size of the screw matches the requirements of your application. Choosing the correct diameter and length is essential for optimal performance.

2. Choose the Right Material: Depending on the environment and application, select a material that offers the necessary strength and resistance to corrosion. Stainless steel is a popular choice for its durability and resistance to rust.

3. Use the Proper Tool: To prevent damaging the screw head or the surrounding material, use the correct screwdriver or bit that fits the cross recess perfectly. This ensures efficient driving and reduces the risk of stripping.

4. Consider Thread Type: Different applications may require different thread types, such as coarse or fine threads. Ensure that the thread type of the screw matches the material you are fastening.

5. Ensure Proper Torque: Apply the correct amount of torque when driving the screw. Over-tightening can cause damage, while under-tightening can lead to a loose fit.

Conclusion

Small pan head screws with cross recesses may seem like a simple component, but they offer a wealth of advantages that make them indispensable in various applications. Their enhanced torque control, reduced cam-out, and versatility make them a go-to choice for professionals across multiple industries. By understanding their features, benefits, and applications, you can make informed decisions and ensure that you select the right fastener for your specific needs. Embrace the functionality of small pan head screws with cross recesses and experience the difference they can make in your projects.
